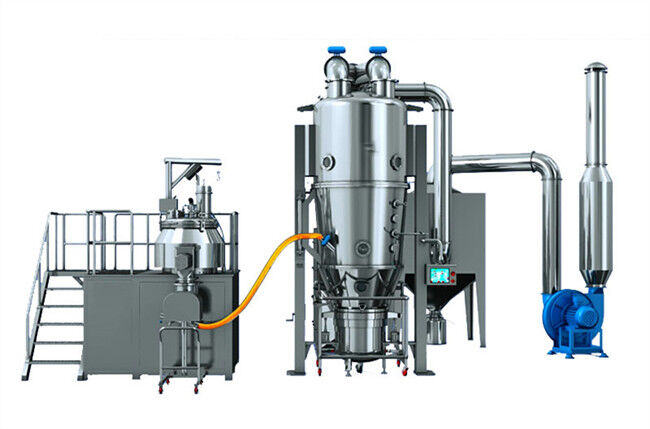

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine

Name: FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine
Brand: SNYNXN
SKU: FG 120
Price: 10000 USD
Availability: InStock
Rating: 4.9 (196 reviews)

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP, ISO 9001 Certification
Model Number:	FG 120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD10000-100000/SET
Packaging Details:	Film Wrapping, Wooden Case.
Delivery Time:	50 - 90 DAYS
Payment Terms:	L/C, T/T,
Supply Ability:	500 SETS/YEAR

Contact Now

Detailed Product Description

Product Name:	Fluid Bed Granules Drying Processor	Application Industry:	Drying In Medicine Processing, Chemicals Processing, Food Processing,
Material Processed:	Plastics, Chemicals, Food, Medicine, Feed	Capacity:	1.5 - 1100 Kg/batch, Depend On Model
Material Type:	All Type Of Powders And Granules	Fan Power(w):	2.2-75 KW Depend On Model
Key Selling Point:	Safe, Clean, High Productivity, Long Time Use.	Showroom Location:	Spain, Serbia, Viet Nam, Russia, Thailand, Mexico,
Main Material:	304/316L Stainless Steel	After-sales Service Provided:	Video Technical Support, Online Support, Spare Parts, Field Ma
High Light:	FG fluid bed equipment , Pharmaceutical fluid bed equipment , Coffee granule fbd dryer operation

Description: FG Vertical Fluidized Bed Dryer, Industrial Fluid Bed Drying Equipment

Factory Supply FG type Pharmaceutical Equipment FBD Dryer Chemical Foodstuff Coffee Drying Machine

The purified and heated air is introduced from the bottom by the draft fan and passed through the screen plate. The fluidization is formed through stirring and negative pressure in the working room. The moisture will be rapidly evaporated and exhausted so the material can be dried very fast.

FEATURES

The structure of fluidization bed is round so it is smooth inside without cleaning dead corners.
There is a stirring device inside of the hopper which can avoid agglomeration of wet material.
The granule is discharged by tipping over the hopper. The discharged system can be designed as per customer requirements.
The dryer is operated at the negative pressure and seal conditions. The air is filtered before enters to the dryer. Therefore, it is simple in operation and convenient in cleaning.
The drying speed is fast and the temperature is uniform. The drying time is normally 20~30 minutes for each batch.

APPLICATION

Damp granules and powder materials in pharmaceutical, foodstuff, feed, chemical, and agrochemical industries.
Granules made by extruder, oscillating granulator, and high speed mixing granulator.
Special large granule and small blocks that having adhesive property.
The material that changes volume during drying process; such as konja

Technical Parameter

item		unit	Model
item		unit	3	5	15	30	60
Raw material tank	volume	L	12	22	45	100	220
Raw material tank	diameter	mm	300	400	550	700	1000
Output capacity	min	kg	1.5	4	10	15	30
Output capacity	max	kg	4	6	18	36	72
fan	air quantity	m3/h	1000	1200	1400	1800	3000
	Air pressure	mmH2O	375	375	480	480	480
	power	kw	3	4	5.5	7.5	11
steam consumption		kg/h	15	23	42	70	141
compressured air consupmtion		m3/min	0.6	0.6	0.6	0.9	0.9
weight		kg	250	300	700	900	1100
steam pressure		Mpa	0.3~0.6
temperature		℃	room temperature -120℃,adjustable
Working time		min	according to material feature45~90
Receiving rate		%	≥99
noize		dB(A)	fan and main frame installed separately, noise≤75dB(A)

item		unit	Model
item		unit	120	150	200	300	500
Raw material tank	volume	L	420	530	670	1000	1500
Raw material tank	diameter	mm	1200	1300	1400	1600	1800
Output capacity	min	kg	80	90	100	150	250
Output capacity	max	kg	140	200	240	360	600
fan	air quantity	m3/h	4500	5200	6000	7000	8000
	Air pressure	mmH2O	550	550	750	750	950
	power	kw	18.5	18.5	22	30	45
steam consumption		kg/h	211	251	282	366	451
compressured air consupmtion		m3/min	0.9	0.9	1.1	1.5	1.5
weight		kg	1300	1500	1650	1800	2000
steam pressure		Mpa	0.3~0.6
temperature		℃	room temperature -120℃,adjustable
Working time		min	according to material feature45~90
Receiving rate		%	≥99
noize		dB(A)	fan and main frame installed separately, noise≤75dB(A)

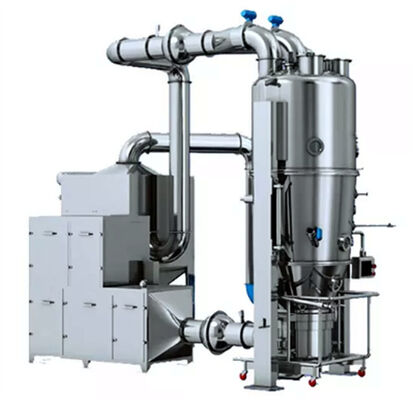

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine 2

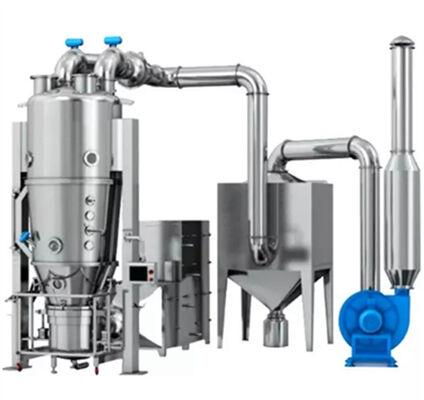

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine 3

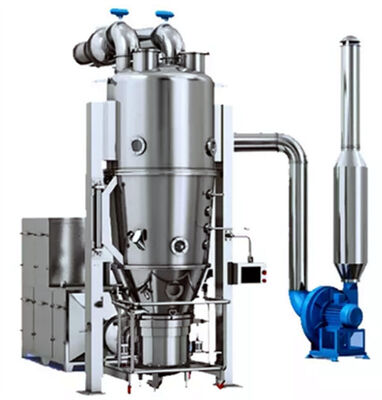

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine 4
