Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU, CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP, ISO 9001 Certification |
| Model Number: | FG 500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-100000/SET |
| Packaging Details: | Film Wrapping, Wooden Case. |
| Delivery Time: | 50 - 90 DAYS |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 500 SETS/YEAR |
| Description: | Fluid Bed Dryer, Fluidized Bed Dryer | Batch Output: | 250 - 600 Kg/batch |
|---|---|---|---|
| Model: | FG Fluid Bed Dryer | Application In: | Medicine, Chemicals, And Food Processing, |
| Purpose: | Drying, Reduce Material's Moisture, Fluid Fluidized Bed Dryer Price, Salt/powder/particle/chemical Drying | Power(w): | 45 KW |
| Processing Material: | Powders, Granules | Power Source: | 380V, 220v/380v, 220v-450v, 415V/50Hz/60H, 380V/50Hz |
| Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | CE Fluid Bed Dryers,CE Rapid Fluid Bed Dryer,CE Pharmaceutical fluidized bed drying process |
||

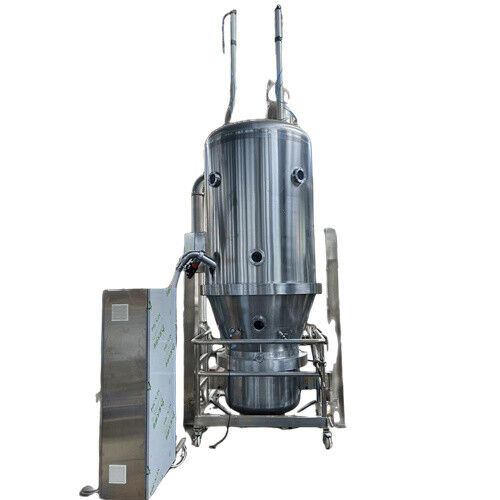

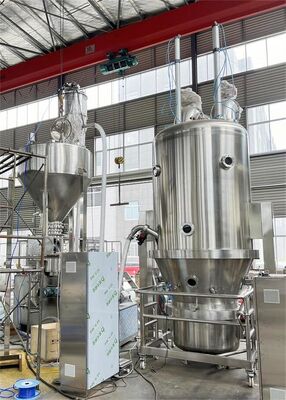

Description: CE Certified Rapid Fluidized Bed Dryer Pharmaceutical Used
CE Certified Rapid Fluidized Bed Dryer Pharmaceutical Powder Drying Use
Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Features
1,The structure of fluidization bed is round so as to avoid the dead angle
2,Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow
3,The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too
4,It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
5,The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch.
Scope of application
1,Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
2,Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries etc.
3,The raw material that large in granule and small in block and having adhesive property
4,Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Technical Parameter
| type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| item | unit | ||||||||||
| Container of raw material | diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| Production capacity | min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| consumption of steam | kg/h | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | 120°C (Adjustable from ambient to 120) | |||||||||
| Yield | % | >99 | |||||||||
| Option time | min | 1530(depends on material) | |||||||||
| Content at final term. | % | -0.2( depends on material) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
