Durable 120KG Fluid Bed Dryer Food Pharmaceutical Materials Drying Equipment

Name: Durable 120KG Fluid Bed Dryer Food Pharmaceutical Materials Drying Equipment
Brand: SNYNXN
SKU: FG 120
Price: 10000 USD
Availability: InStock
Rating: 4.5 (134 reviews)

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP, ISO 9001 Certification
Model Number:	FG 120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD10000-100000/SET
Packaging Details:	Film Wrapping, Wooden Case.
Delivery Time:	50 - 90 DAYS
Payment Terms:	L/C, T/T,
Supply Ability:	500 SETS/YEAR

Contact Now

Detailed Product Description

Product Name:	Fluid Bed Granules Drying Processor	Application Industry:	Drying In Medicine Processing, Chemicals Processing, Food Processing,
Material Processed:	Plastics, Chemicals, Food, Medicine, Feed	Capacity:	1.5 - 1100 Kg/batch, Depend On Model
Material Type:	All Type Of Powders And Granules	Fan Power(w):	2.2-75 KW Depend On Model
Key Selling Point:	Safe, Clean, High Productivity, Long Time Use.	Showroom Location:	Spain, Serbia, Viet Nam, Russia, Thailand, Mexico,
Main Material:	304/316L Stainless Steel	After-sales Service Provided:	Video Technical Support, Online Support, Spare Parts, Field Ma
High Light:	Durable Fluid Bed Dryer 75KW , 120KG Fluid Bed Dryer 75KW , 75KW fluid bed drying equipments

Description: FG Vertical Fluidized Bed Dryer, Industrial Fluid Bed Drying Equipment

FG Model Durable Output 120KG Fluid Bed Drying Equipment In Food, Pharmaceutical Materials Preparation

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Features

1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Application

1.Drugs granulation and coating.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Technical Parameter

item		unit	Model
item		unit	3	5	15	30	60
Raw material tank	volume	L	12	22	45	100	220
Raw material tank	diameter	mm	300	400	550	700	1000
Output capacity	min	kg	1.5	4	10	15	30
Output capacity	max	kg	4	6	18	36	72
fan	air quantity	m3/h	1000	1200	1400	1800	3000
	Air pressure	mmH2O	375	375	480	480	480
	power	kw	3	4	5.5	7.5	11
steam consumption		kg/h	15	23	42	70	141
compressured air consupmtion		m3/min	0.6	0.6	0.6	0.9	0.9
weight		kg	250	300	700	900	1100
steam pressure		Mpa	0.3~0.6
temperature		℃	room temperature -120℃,adjustable
Working time		min	according to material feature45~90
Receiving rate		%	≥99
noize		dB(A)	fan and main frame installed separately, noise≤75dB(A)

item		unit	Model
item		unit	120	150	200	300	500
Raw material tank	volume	L	420	530	670	1000	1500
Raw material tank	diameter	mm	1200	1300	1400	1600	1800
Output capacity	min	kg	80	90	100	150	250
Output capacity	max	kg	140	200	240	360	600
fan	air quantity	m3/h	4500	5200	6000	7000	8000
	Air pressure	mmH2O	550	550	750	750	950
	power	kw	18.5	18.5	22	30	45
steam consumption		kg/h	211	251	282	366	451
compressured air consupmtion		m3/min	0.9	0.9	1.1	1.5	1.5
weight		kg	1300	1500	1650	1800	2000
steam pressure		Mpa	0.3~0.6
temperature		℃	room temperature -120℃,adjustable
Working time		min	according to material feature45~90
Receiving rate		%	≥99
noize		dB(A)	fan and main frame installed separately, noise≤75dB(A)

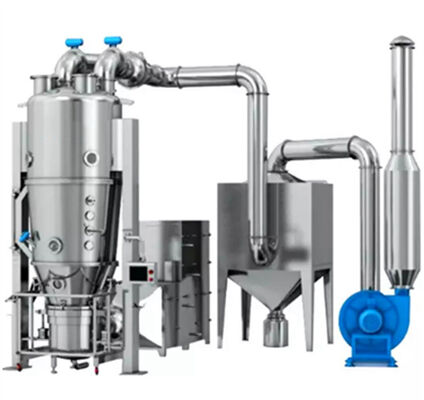

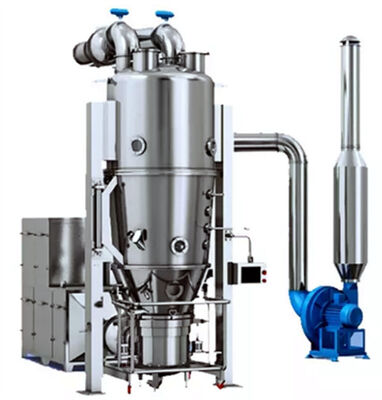

Durable 120KG Fluid Bed Dryer Food Pharmaceutical Materials Drying Equipment 2

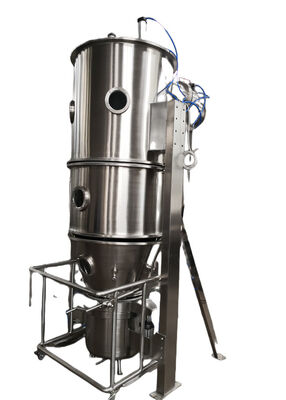

Durable 120KG Fluid Bed Dryer Food Pharmaceutical Materials Drying Equipment 3

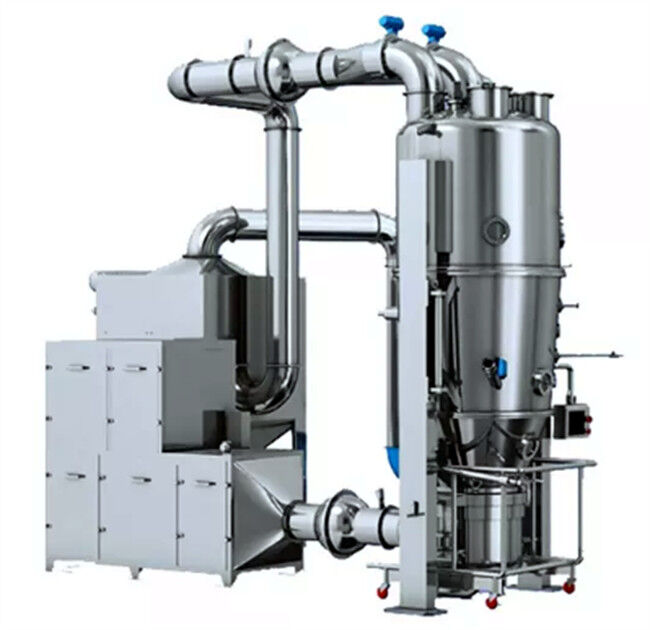

Durable 120KG Fluid Bed Dryer Food Pharmaceutical Materials Drying Equipment 4

Company File:
SNYNXN was founded in 2007, is a professional manufacturer engaged in the research, development, production and sales of Drying Equipment, Granulation Machines, Mixers, Coating machines and other Pharmaceutical machinery.
Over 15 years R&D, SNYNXN now is the leading company specialized in Pahrmaceutical automatic production line, also experienced in flexible solutions for chemical and food industries.
SNYNXN dedicate to premium products and customer services. Our office and warehouse are located in Jiangyin city, Jiangsu Province, near Shanghai seaport, with convenient transportation. We have our own factory and produce our own machines. We will take strict quality control and considerate customer service as our duty, experienced staff will discuss your needs with you at any time to ensure your satisfaction.
SNYNXN brand machines are sold well all over the country, also exported to Europe, the United States, Canada, South Africa and other countries and regions. Whether you choose the current product from our catalog or seek engineering help for your application, you can discuss your purchasing needs with our customer service center.
