LDP Model Medicine Fluid Bed Coater Coating Process Stainless Steel 500KGS

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	LDP 200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Type:	Fluid Bed Granulating Coating Machine	Application:	Granules
Working Time:	45-90 Min	Capacity:	4 - 500 KGS
Nozzle:	Two-fluid Type	Air Consumption:	0.4 - 2.4 M3/min
Core Components:	Motor, PLC	Control System:	Touch Screen/ Button Type
Dimension(LWH):	According To The Model And Layout	Material:	SUS304, SUS316L, Other, Stainless Steel304/316L
Highlight:	LDP Fluid Bed Coater , Medicine Fluid Bed Coater , fluid bed coating process 500KGS

Description: General description of Fluid bed coating machine

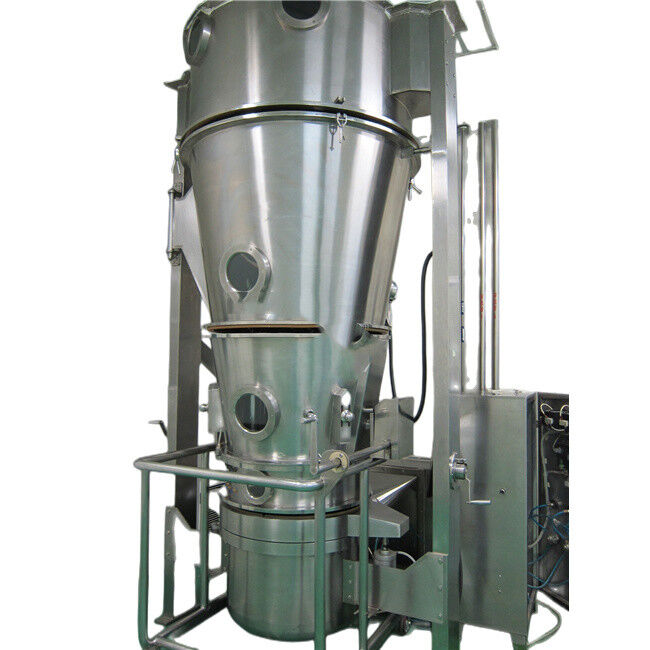

Stainless Steel Vertical Type LDP Model Medicine Fluid bed Coater Coating Machine

Fluid Bed Coater is a new type coating equipment that combined fluid bed spray technology and coating well. It is widely used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granules and powder coating.

Features of Fluid bed coating machine

1. Coating for bottom spray, material flow in order so uniform and continuous film can be got.

2. Taste masking odor, moisture-proof, antioxidation, prevent water, heat insulation,, coloration and separation coating.

3. Low productive cost, and the coating material is used perfectly.

4. Short travel distance of fog granule and without the problem of “spray drying”.

5. The design of cylinder for accelerator or cone for decelerate can be used for coating of granules, powder and pellets.

6. Material has very good dispersion, there is no adhesion.

Product details

Function	Coating and drying
Material	SUS304/ SUS316L
Heating source	Steam/ electricity
Inlet air filter	Pre, middle and high efficient filter
Control system	Touch screen/ Button type
Nozzle	Two-fluid type
Explosion-proof	Option
Working temperature	40~120℃
Compressed air	0.4~0.6Mpa
Certificate	CE

Item		Unit	Model
Item		Unit	5	15	30	60	120	200	200~800
Capacity		kg/batch	4-5	10-20	25-40	40-80	80-150	150-250	Special design
Container volume		L	15	50	100	220	360	650
Power of fan		kW	4	5.5	7.5	15	18.5	22
Compressed air	Pressure	Mpa	0.6
Compressed air	Consumption	m3/min	0.4	0.6	0.9	1.3	1.8	2.4
Steam	Pressure	Mpa	0.4-0.6
Steam	Consumption	m3/min	9kW	64	85	181	250	330
