Vertical Multifunctional Fluidized Bed Processor Fluid Bed Dryer Processor Coating Machine

Name: Vertical Multifunctional Fluidized Bed Processor Fluid Bed Dryer Processor Coating Machine
Brand: SNYNXN
SKU: LDP 60
Rating: 4.6 (195 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	LDP 60

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

MachineType:	Stainless Steel Fluid Bed Granulating Coating Machine	Working Volume Top Spray:	220L
Machine Type:	Granulator	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, P
Warranty Of Core Components:	1 Year	Number Of Nozzles:	1-3
Inlet Air Temperature:	Room Temperature To -120℃,auto-adjust	Applicable Industries:	Manufacturing Plant, Food & Beverage Factory
Material:	SUS304, SUS316L, Other, Stainless Steel304/316L	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
High Light:	Vertical Fluidized Bed Processor , 220L Fluidized Bed Processor , granule fluid bed dryer processor

Type: Multi-Functional Fluidized Bed Processor Fluid Bed Coating Machine

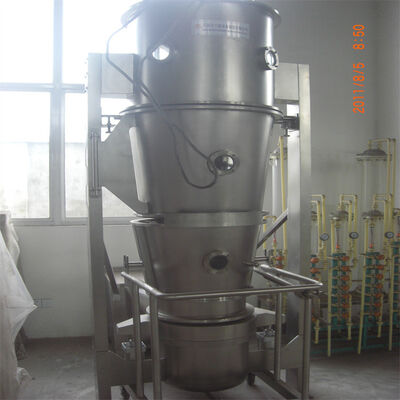

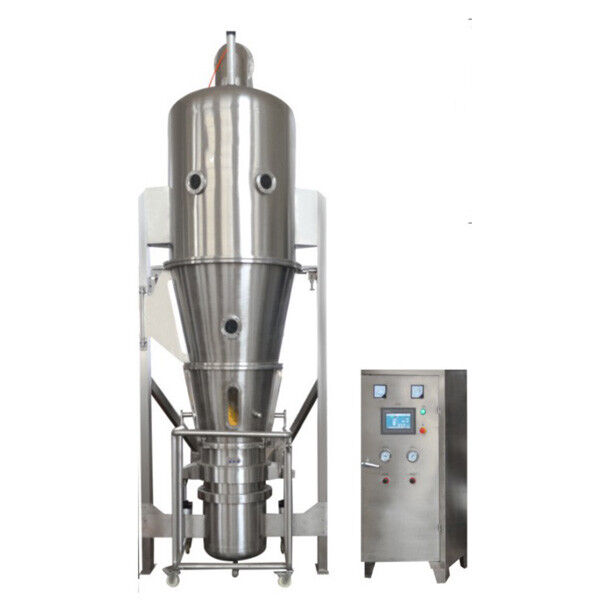

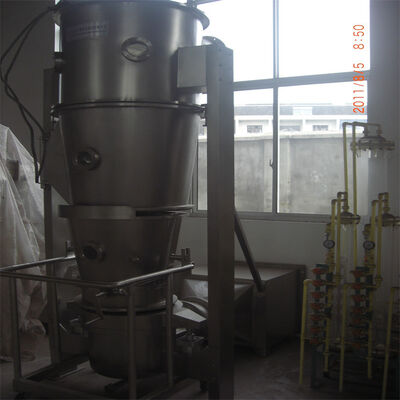

Stainless Steel Vertical Type LDP -60 Multi-Functional Fluidized Bed Processor Fluid Bed Coating Machine

Fluid-bed coater is a new style coating equipment that combined fluid- bed spraying technology and coating well. It is widely used

for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating,granule,powder

coating,etc.

Main Introduction

Material suspends and forms fluidized state under the action of the undefiled hot air flow (negative pressure), its surface is in full contact with the heated air, and the material is evenly heated and reaches ideal state for hot swapping thus to have a high efficiency.

Configured with proper spraying system and through further structural improvement, fluid bed becomes multi-purpose technological equipment in combined functions of drying, granulating, solution coating, and power dressing.

This model is equipped with one or more among top spray, bottom spray and side spray systems integrately, which are mostly used in the applications of granulating, drying, pelletizing and coating granules in the pharmaceutical, food, chemical industries.

Application:

1. Drugs granulation and coating.
2. Granulation: Tablet particles, granule particles, capsule particles.
3. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4. Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5. Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Technical parameters

Specification Item			5	15	30	60	120	200	300-1000
Feed capacity		/ kg/batch	4-6	10-20	25-40	40-80	80-150	150-250
Raw material container volume		L	15	50	100	220	360	650
Fan power		Kw	4	5.5	7.5	15	18.5	22
Compressed air	Pressure	MPa	0.6
Compressed air	Consumption	M3/min	0.4	0.6	0.9	1.3	1.8	2.4
Steam	Pressure	MPa	0.4 -0.6
Steam	Consumption	Kg/h	9	64	85	181	250	330
Host size		H1(mm)	2600	2850	3150	3250	3500	3800	Custermorised Design
		H2(mm)		340	490	590	790	890
		H3(mm)		2630	2930	3020	3280	3580
		B1(mm)	1010	1160	1460	1660	2060	2260
		B2(mm)	1560	1860	2460	2860	3660	4060
		φ1(mm)	550	700	1000	1200	1600	1800
		φ2(mm)	180	250	250	280	280	315
		L(mm)	850	1550	1700	1800	2000	2100

Features of equipment

Coating of bottom spraying,material flow in order. We can get uniform and continuous film

Taste masking odor,moisture proof, anti oxidation, prevent water, heat insulation,coloration and separation coating

Low productive cost, and the coating material is used perfectly

Short travel distance of fog granule and without the problem of spray drying

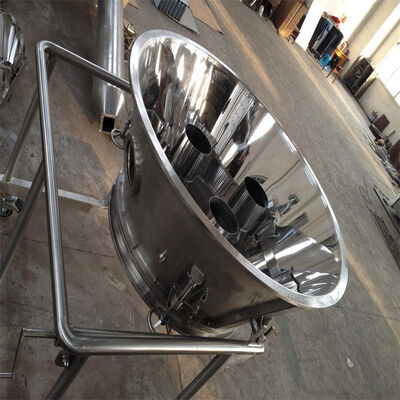

The design of cylinder for accelerator or cone for decelerate can coating of granule,big granule and pellets.

The high separate,without adhere.
