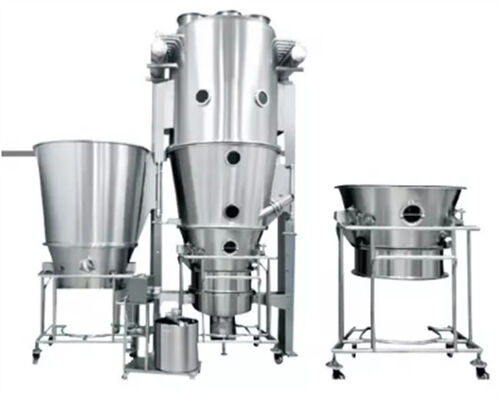

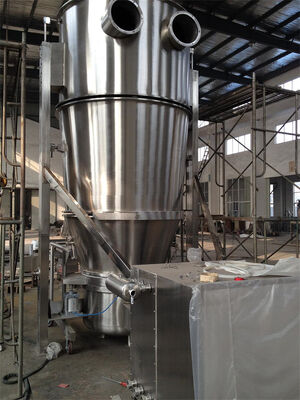

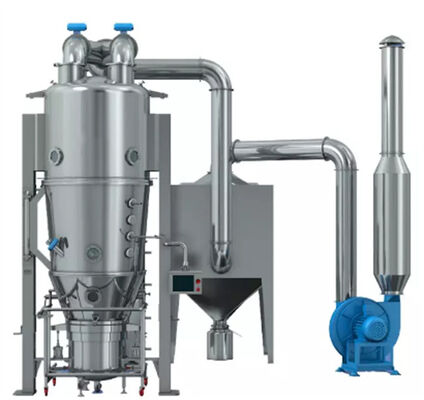

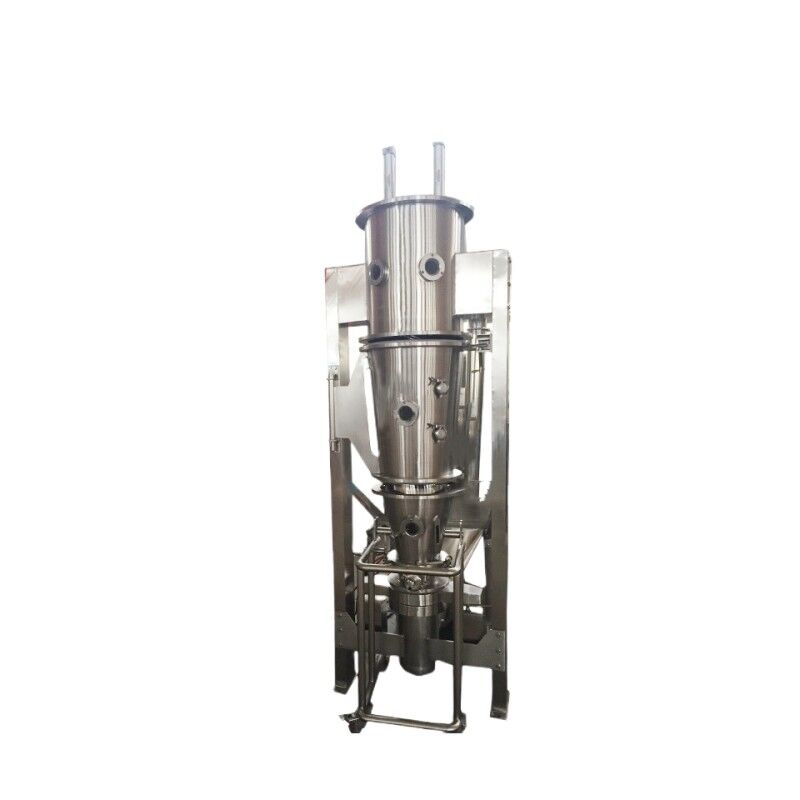

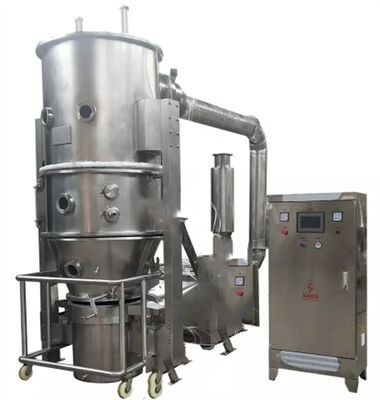

FLP Series Powder Coating Film Coating Machines Polyurethane Spray

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FLP 120

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

MachineType:	Film Coating Machines	Container Diameter:	700 - 1500 MM
Capacity:	2.5-120 KGS/BATCH	Heating Method:	Electrical,oil,coal,steam
Compressed Air:	0.4 - 0.6 Mpa	Advantages:	Multi-functional, Energy Saving
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, P	Construction Material:	304/316, According To Customer's Requirements
Machinery Test Report:	Provided	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	Polyurethane Spray Coating Machine , FLP Series Coating Film Coating Machines , 0.6 Mpa Coating Film Coating Machines

Description of FL Series Fluidized Fluid Bed Dryer Coating Machine

FLP series Fluidized Fluid Bed Dryer Coating Machine Granulator From China manufacturer factory

FL Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-dring in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutiCal industry, foodstuff industtry and chemical industry. etc.

Features

Multi-function such as granulating, pelleting, coating in one machine Powder material granulating Powder materal coating Powder material pelleting Chinese medicine spray drying, granulating and coating Make 10-30 meshes big granule Film coating of Powder, granules and pellets, entericrelease. slow and control release coating Taste masking, odor, moisture-proof, anti-oxidation, prevent water, heat insulation, coloration and separation coating Powder, granule, agglomerate material drying

1.The machine adopts modular design. Three functions or any one or two of the functions can be configured according to customer requirements.

2.The machine is provided with complete function systems including top spray, bottom spray and side spray to conveniently realize such the functions of drying, granulating, coating and pelletizing.

3.The machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. All process parameters can be printed and the original records are true and reliable. It fully meets GMP requirements for pharmaceutical production.

Technical Data:

Specification Item			5	15	30	60	120	200	300-1000
Feed capacity		/ kg/batch	4-6	10-20	25-40	40-80	80-150	150-250
Raw material container volume		L	15	50	100	220	360	650
Fan power		Kw	4	5.5	7.5	15	18.5	22
Compressed air	Pressure	MPa	0.6
Compressed air	Consumption	M3/min	0.4	0.6	0.9	1.3	1.8	2.4
Steam	Pressure	MPa	0.4 -0.6
Steam	Consumption	Kg/h	9	64	85	181	250	330
Host size		H1(mm)	2600	2850	3150	3250	3500	3800	Custermorised Design
		H2(mm)		340	490	590	790	890
		H3(mm)		2630	2930	3020	3280	3580
		B1(mm)	1010	1160	1460	1660	2060	2260
		B2(mm)	1560	1860	2460	2860	3660	4060
		φ1(mm)	550	700	1000	1200	1600	1800
		φ2(mm)	180	250	250	280	280	315
		L(mm)	850	1550	1700	1800	2000	2100

Our company

SNYNXN specially manufactures pharmaceutical machine and drying equipment. Our machines are sold to more than ten provinces all over China, also exported to USA, Mexico, Spain, Russia,Belarus, Singapore,Korea,Malaysia, Egypt,Algeria,Thainland, Philippine, United Arab Emirates,Iran, India,Viet Nam, Turkey, Pakistan,South Africa,Syria,Mongolia and Bangladesh etc. countries. Our company own high technical level of pharmaceutical machines. We develop pharmaceutical machine, chemical equipment, dryer, mixer and granulator etc.products. Our Company has the strict way of examine and the process of science managing, and pass ISO9001 International Quality Management System Certificate. All machines meet with CE and GMP standard.

FAQ

Questions	Answers
1) How long for the delivery?	Within 45 days after receiving the deposit.
2) What's the payment terms?	T/T, L/C, Cash, West union etc.
3) OEM and ODM?	Yes, both are available.
4) How long is the warranty period?	Our warranty period is one year generally.
5) What is your payment term?	Our usual payment term is: 30% TT in advance, 70% TT before delivery.
6) Can it be customized?	Of course. Just tell us your specific requsts and we will design a best solution for you at a most reasonable price!
