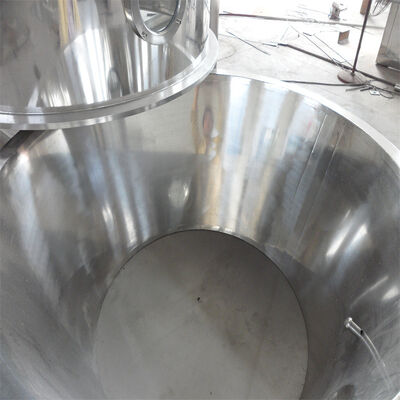

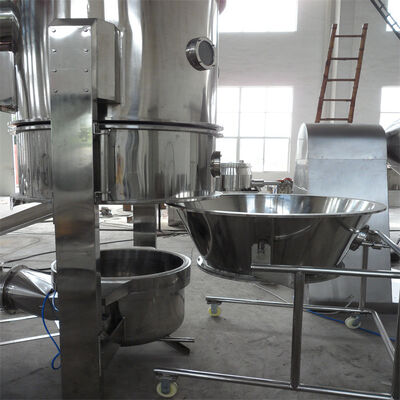

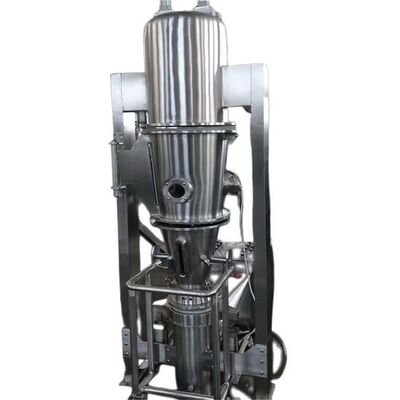

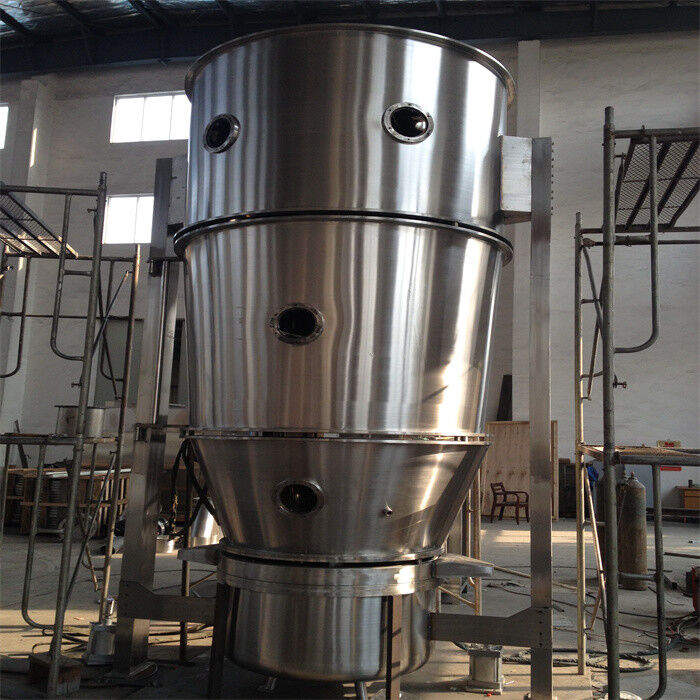

Stainless Steel Vertical Type Small Fluid Bed Dryer In Medicine Preparation Line
Product Description:
Fluidized bed dryer is the special equipment used extensively in the pharmaceutical industries to reduce the moisture content of pharmaceutical powder and granules.
Working Process:
During the fluidization process of the drying tank, hot air is introduced at high pressure through a air filtration system. The wet solids are blown up from the bottom and suspended along the stream of air (fluidized state). Heat transfer is accomplished by direct contact between the wet solid and purified hot air. The vaporised water or liquid is carried away by the hot air quickly, and the dried granule or powder left inside the tank.
Features
1 .Fluid bed to achieve fast heat transmission of medium.
2.Seal negative pressure operation, there is no dust.
3. Because of using anti-static material as filter, it is safe in operation;
4. The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is conformity with the requirements of GMP.
Technical Parameter
| type |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
| item |
unit |
| Container of raw material |
diameter |
mm |
300 |
400 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
| |
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
2500 |
| Production capacity |
min |
kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
500 |
| max |
kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
1100 |
| consumption of steam |
kg/h |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
800 |
| amount of compressed air |
m3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.5 |
| Power of fan |
kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
75 |
| Temperature |
ºC |
120°C (Adjustable from ambient to 120) |
| Yield |
% |
>99 |
| Option time |
min |
1530(depends on material) |
| Content at final term. |
% |
-0.2( depends on material) |
| Noise |
dB |
≤75 |
| Height of main machine |
mm |
2100 |
2300 |
2500 |
3000 |
3300 |
3800 |
4000 |
4800 |
6200 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
Division I professional production of various kinds of pharmaceutical machinery and drying equipment, our products sell well in over 20 countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
