Description: For Drying Chemical Medicine Pill Powder Granule Pharmaceutical Fluid Bed Dryer
Stainless Steel Pill Powder Granule Drying Machine pharmaceutical fluid bed dryer

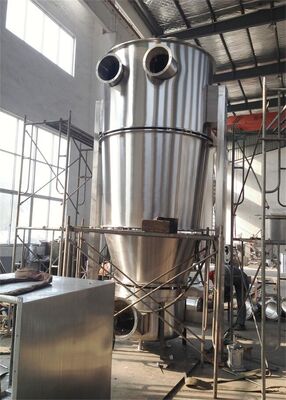

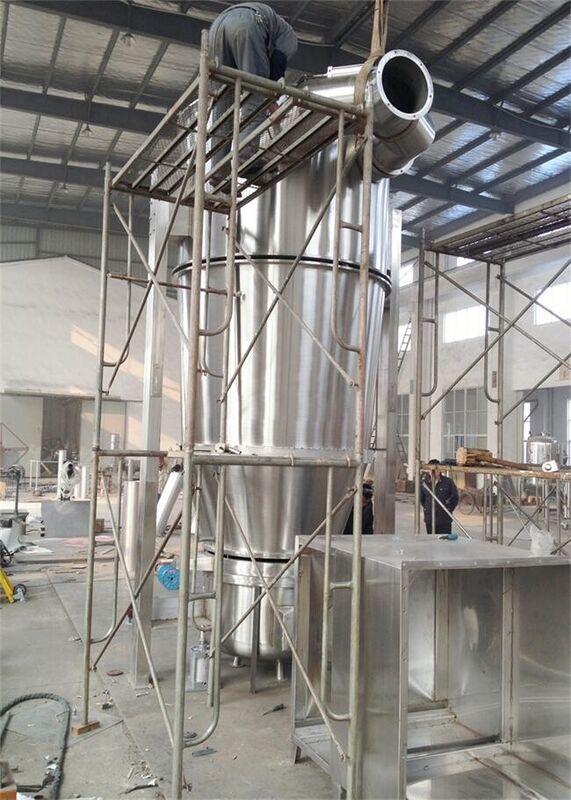

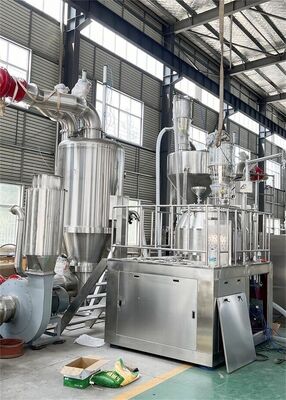

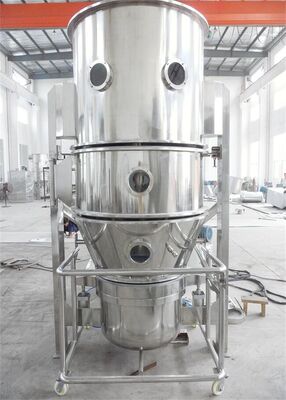

This fluidized bed boiling dryer is a batch operation drying machine, it is composed of bottom cylinder, skip car, top cylinder, column main parts, equip with other auxiliary devices to achieve high efficiency and good performance drying working.
Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Features
1,The structure of fluidization bed is round so as to avoid the dead angle
2,Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow
3,The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too
4,It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
5,The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch.
Scope of application
1,Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
2,Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries etc.
3,The raw material that large in granule and small in block and having adhesive property
4,Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Technical Parameter
| type |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
| item |
unit |
| Container of raw material |
diameter |
mm |
300 |
400 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
| |
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
2500 |
| Production capacity |
min |
kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
500 |
| max |
kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
1100 |
| consumption of steam |
kg/h |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
800 |
| amount of compressed air |
m3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.5 |
| Power of fan |
kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
75 |
| Temperature |
ºC |
120°C (Adjustable from ambient to 120) |
| Yield |
% |
>99 |
| Option time |
min |
1530(depends on material) |
| Content at final term. |
% |
-0.2( depends on material) |
| Noise |
dB |
≤75 |
| Height of main machine |
mm |
2100 |
2300 |
2500 |
3000 |
3300 |
3800 |
4000 |
4800 |
6200 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
Division I professional production of various kinds of pharmaceutical machinery and drying equipment, our products sell well in over 20 provinces and cities, and exported to America, Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea, Malaysia, the Philippines, the united Arab emirates, Thailand, Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria, Mongolia, Bangladesh and other countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
